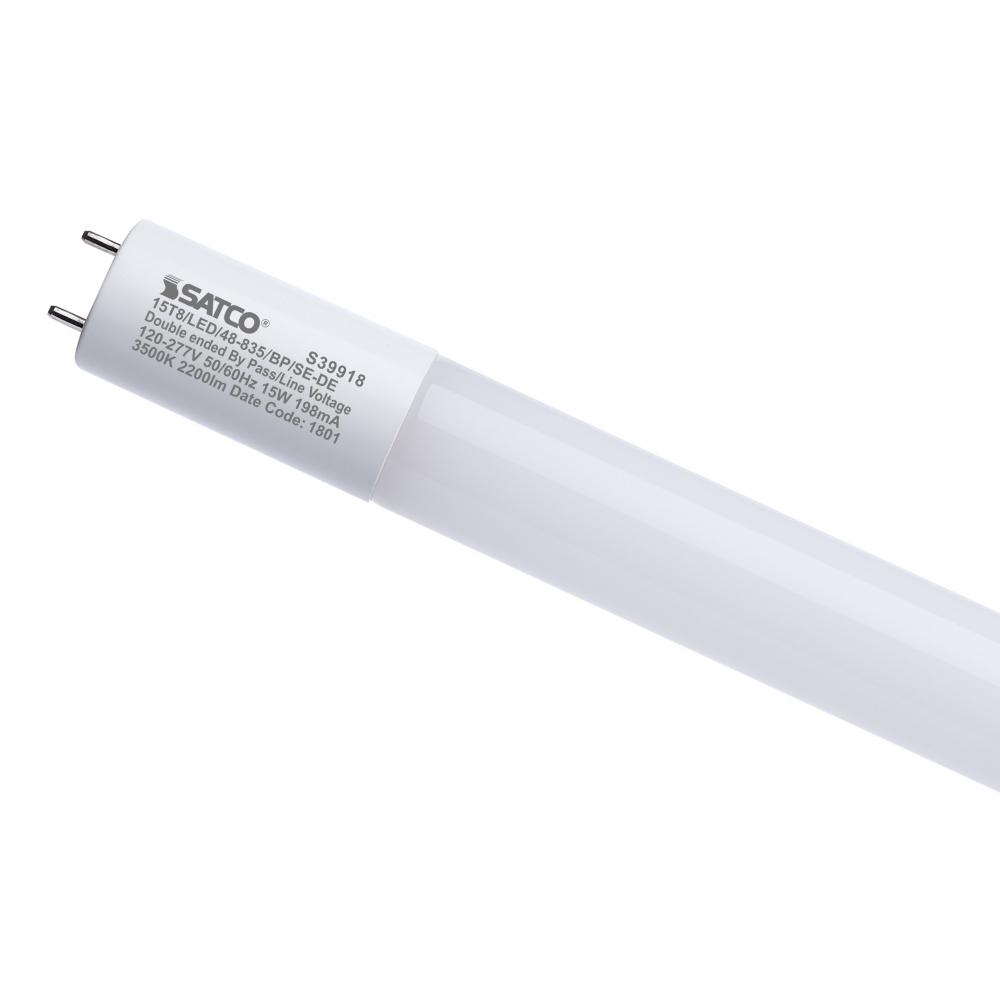

15 Watt 4 Foot T8 LED; 3500K CCT; Medium Bi Pin Base; Ballast Bypass; Single or Double Ended Wiring; (X6Z0H)

Image may not reflect selected features

No Image
Available

15 Watt 4 Foot T8 LED; 3500K CCT; Medium Bi Pin Base; Ballast Bypass; Single or Double Ended Wiring;

BASE PRICE:

/ / 1

($10.14 / 1)

WAS

Call for Price

Item #:

X6Z0H

Dimensions:

Width: 1.00"

Finish Family:

White

Availability:

Description

Details

Downloads

15 Watt 4 Foot T8 LED; 3500K CCT; Medium Bi Pin Base; Ballast Bypass; Single or Double Ended Wiring; 120-277 Volt

Internal #:

X6Z0H

Category:

Light Bulbs

Subcategory:

LED Bulbs

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3500K

Bulb Shape:

Diameter:

EA Length:

47.78

Harmonized Codes:

8539.52.0051

Length:

47.78

Lumens:

2100L

Shap Carton Width:

Ship Carton Height:

Ship Weight:

0.5

Warranty:

5 Year Limited - T8 LED Bulbs - Ballast Bypass

Weight:

0.46

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

210

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Gloss White

Burning Position:

Universal

Carton Cubic Feet:

0.0277

Cartons Per Unit:

CBCP:

210

CCT Selectable:

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Neutral White

Country Of Origin:

China

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-2VHDVL

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

140.00 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

4-ft length

Feature 10:

210-degree beam angle

Feature 2:

15W

Feature 3:

25W/28W/30W/32W Fluorescent Replacement

Feature 4:

Ballast Bypass Type B

Feature 5:

120-277V Range Voltage

Feature 6:

Damp location rated

Feature 7:

Suitable for use in enclosed fixtures

Feature 8:

rated for use in damp locations

Feature 9:

Glass Tube

Flourescent Equivalent:

25W/28W/30W/32W

Housing Color:

White

Indoor Outdoor:

Indoor and Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

JA8 Compliant:

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Single Ended;Double Ended

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO's S39918 LED Type B ballast bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. They are engineered for single or double-ended wiring options and will not light unless ballast is bypassed. Commercial venues, schools, h

Material:

Glass

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Sleeve

Power Factor:

>0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO's Type B ballast bypass lamps, designed to replace T8 or T12 medium bi-pin fluorescent lamps are available in 2', 3', and 4' lengths. They are engineered for single or double-ended wiring options and will not light unless ballast is b

SDS class:

LED_Lamp

Short Description:

15T8/LED/48-835/BP/SE-DE

Style:

Utility

Surge Protection:

Built-in surge protection - 1KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

<20%

Wattage Selectable:

Watts:

15W
